Configure Quorum on non domain environment

This article would helps to configure Quorum on non domain environment.

Before starting to configure the quorum, follow the link https://geopits.com/blog/configure-domain-independent-availability-group.html then proceed to below steps.

Enable below registry on all the participating nodes.

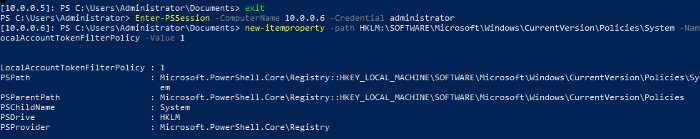

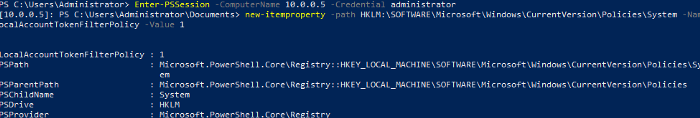

New-ItemProperty -path HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System -Name LocalAccountTokenFilterPolicy -Value 1

On Node 1

On Node 2

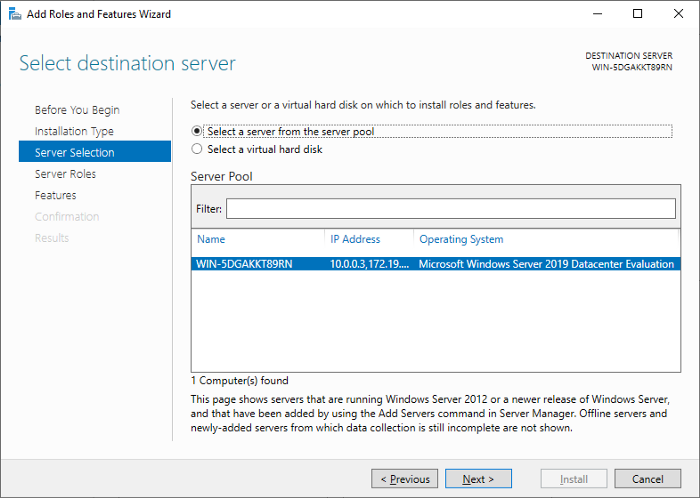

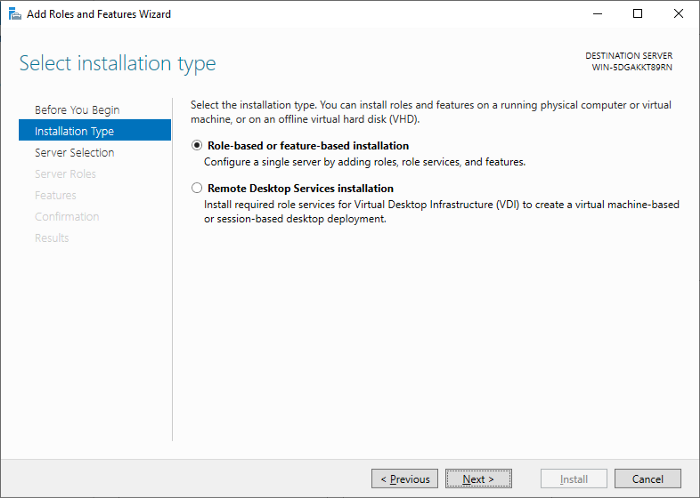

Then initiate iSCSI from Add roles and feature for mapping Quorum Disk. In my demo I have used another server to configure and create virtual Disk for quorum.

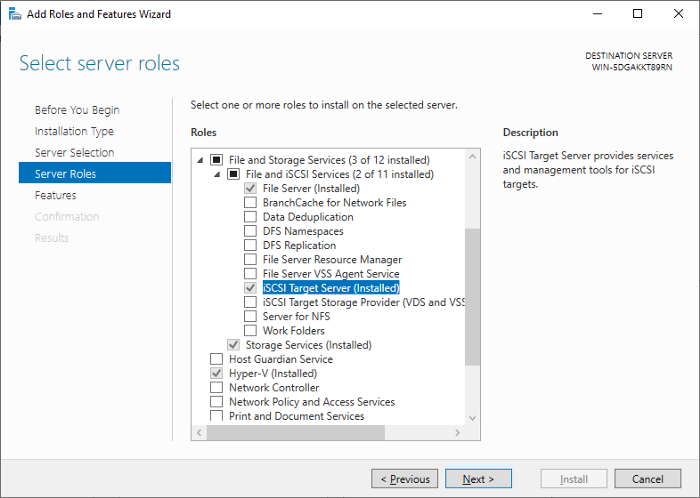

Select File Server and iSCSI Target server

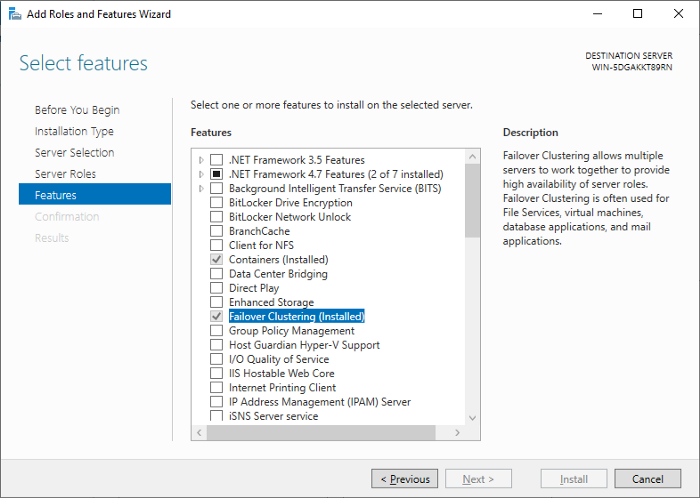

Then select Failover Clustering on feature tab

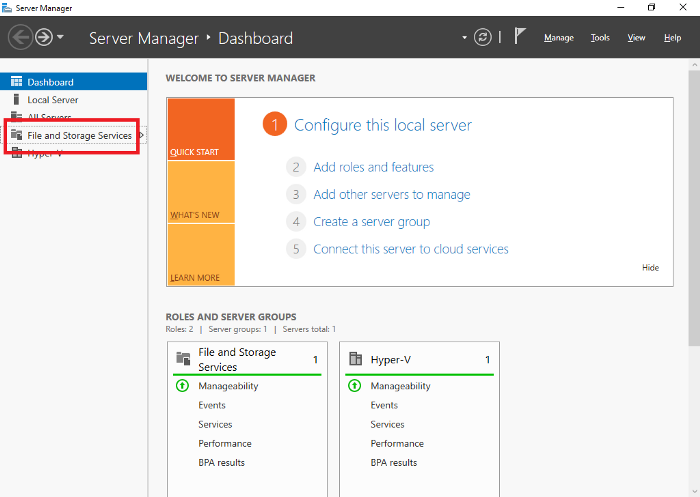

Once installation completed proceed to file and Storage services

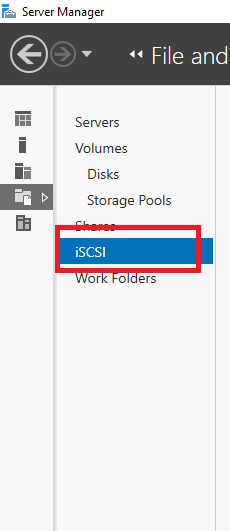

Click the iSCSI tab to create virtual disk

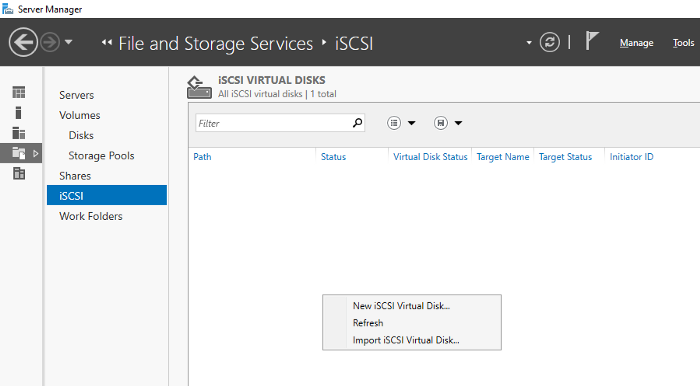

Right click and select New iSCSI Virtual disk

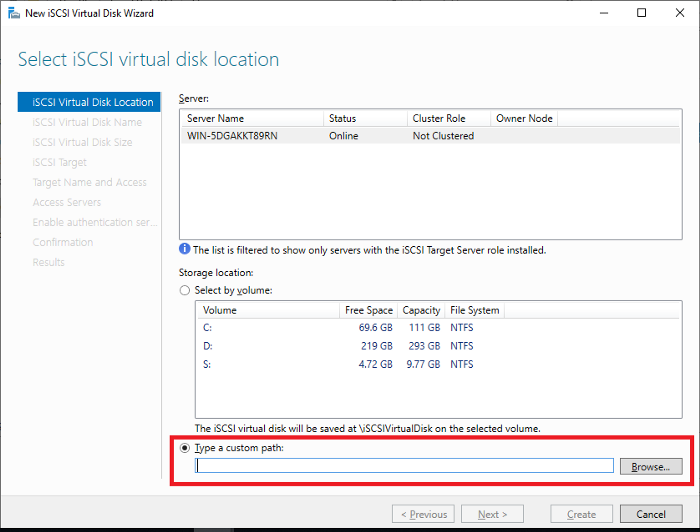

Choose Custom path for virtual disk.

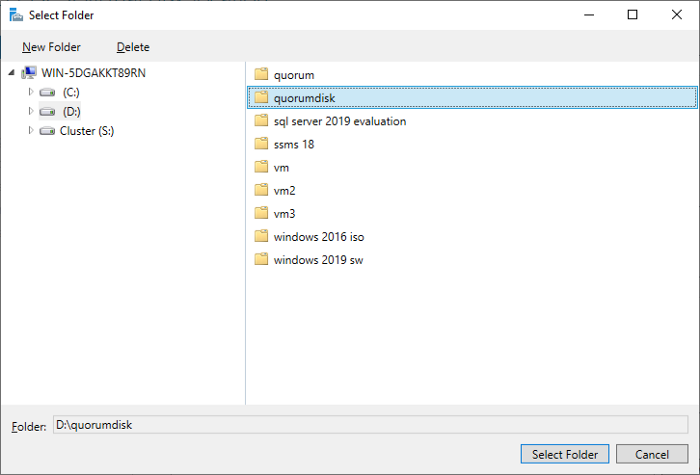

Choose folder to create disk

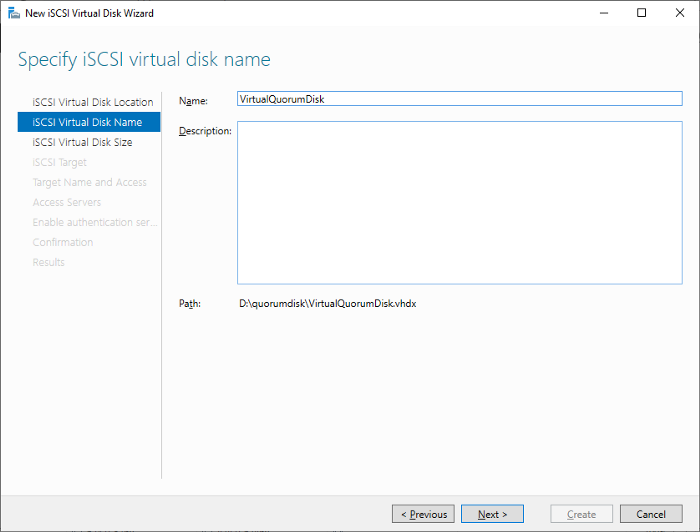

Specify the name for virtual disk

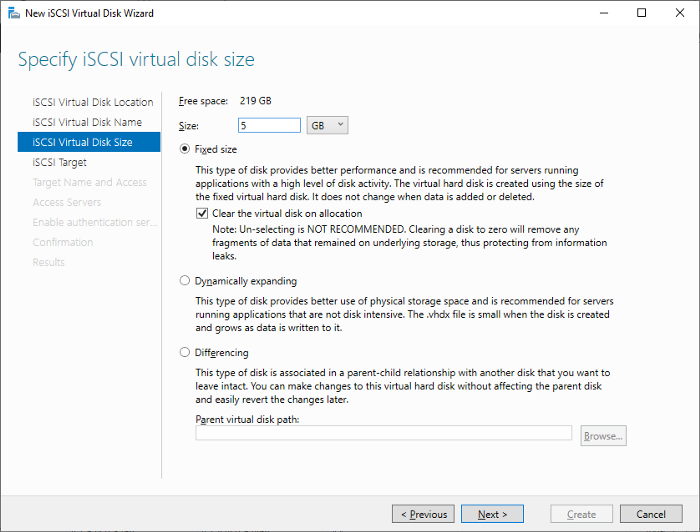

Specify the disk space for quorum folder

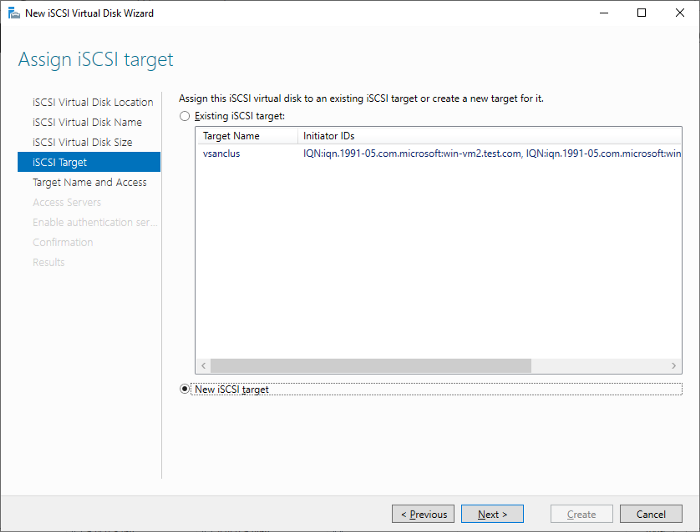

Select new iSCSI target

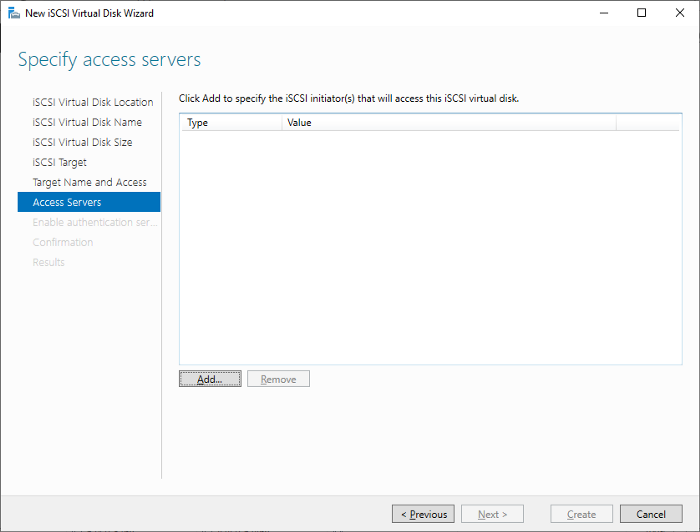

Click on Add server to add the node IPs which are participating for WSFC

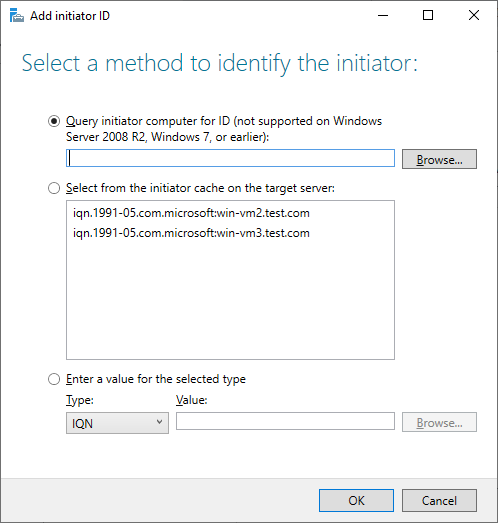

Specify the server details and proceed to completion

Then logon on to each node and follow the below steps

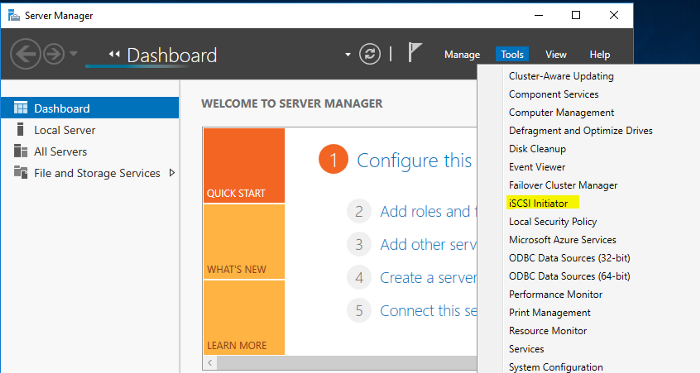

Select iSCSI Initiator to map virtual disk

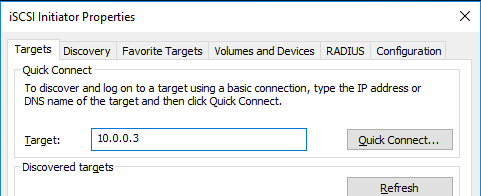

Connect to the file server IP

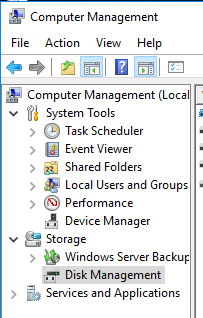

Go to computer management -> Disk Management to see the virtual disk mapper on node 1. Now right click and format and map the disk with any drive letter. Follow the same on node 2.

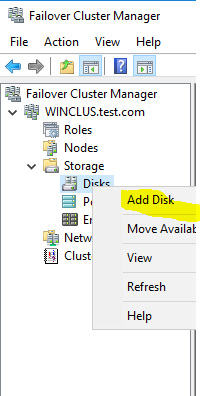

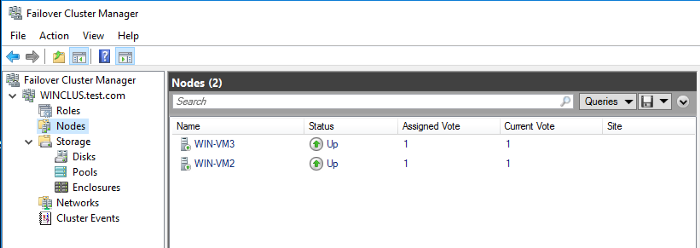

Now go to failover cluster Manager tool to setup WSFC. Now click on disk

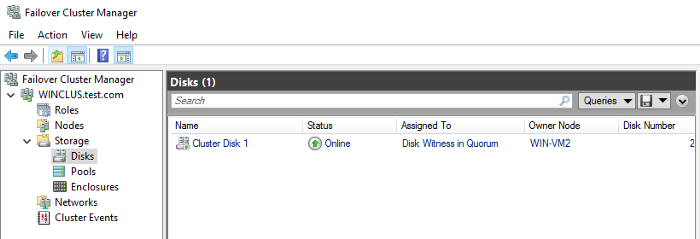

Then follow the regular step to configure WSFC and use disk witness to setup clustering

Few steps are not documented. In case of any issues please post it on comment session, I would try to provide the solution.
